Do I need a 12V-2x6 cable?
No: an RTX 50 card runs from an older PSU via its 12VHPWR cable or the adapter in the box, if the wattage is enough. Which cards use 16-pin, and what to buy.
On this page
No. An RTX 50 card does not need a new 12V-2x6 cable or a new power supply when the existing unit meets NVIDIA's wattage: a 12VHPWR cable from an ATX 3.0 power supply fits the 12V-2x6 socket, and the adapter in the box connects an older unit's 8-pin cables. Adapters are safe when every 8-pin plug is connected and the 16-pin end is pushed fully home.
A new cable or power supply is worth buying in three cases: the unit falls short of the card's wattage, an RTX 5090 needs a 600 W cable, or a builder wants one cable from the power supply to the card. Direct cables for each brand are ranked in Best sleeved PSU cables UK 2026. Prices below are Amazon UK at the time of writing (October 2026).
| Power supply | Card | What to do | What to buy | Cost |
|---|---|---|---|---|
| ATX 3.1 with a native 12V-2x6 cable | Any RTX 50 card within its wattage | Use the native cable | Nothing | £0 |
| ATX 3.0 with a native 12VHPWR cable | RTX 5070 to RTX 5080 within its wattage | Use the 12VHPWR cable; it fits the 12V-2x6 socket | Nothing | £0 |
| ATX 2.x, 8-pin cables, enough watts | RTX 5050, RTX 5060, RTX 5060 Ti | One 8-pin cable, per NVIDIA; check the card maker's page | Nothing | £0 |
| ATX 2.x, 8-pin cables, enough watts | RTX 5070, RTX 5070 Ti, RTX 5080 | NVIDIA's adapter on two 8-pin cables, three for the RTX 5080 | Nothing | £0 |
| Corsair Type 5 unit, no 16-pin socket | Any 16-pin card | One cable from two PSU sockets to the card | Corsair Elite Premium Type 5 12V-2x6 cable | £24.24 |
| Any unit below the card's wattage | RTX 5070 Ti, RTX 5080, RX 9070 XT | Replace with an 850 W ATX 3.1 unit | MSI MAG A850GLS PCIE5 | £124.99 |
| Under 1,000 W, or a cable rated under 600 W | RTX 5090 | Replace with a 1,000 W ATX 3.1 unit | Corsair RM1000e (2025) | £94.90 |
What is the difference between 12VHPWR and 12V-2x6?
12V-2x6 is a revised 16-pin socket, not a new cable. Corsair says the 12V-2x6 connector has sense pins 1.5 mm shorter and power terminals 0.25 mm longer than 12VHPWR, describes the change as one to the pins in the socket, and says existing 12VHPWR cables and adapters work with it.
The revision comes from PCI-SIG's PCIe CEM 5.1 specification, which Intel followed in ATX 3.1, published on 13 September 2023, according to Hardware Busters. The longer power pins and shorter sense pins set the order in which the contacts meet, and PCIe CEM 5.1 adds a 0 W setting to the sense signals, which Hardware Busters describes as safer engagement. Both connectors carry up to 600 W, and CableMod says the 16-pin plug is rated for 30 mating cycles, the same as 6-pin and 8-pin PCIe plugs. NVIDIA recommends a PCIe CEM 5.1 compliant power supply for every RTX 50 card.
Which RTX 50 and RX 9000 cards use the 16-pin plug?
NVIDIA's specifications give the GeForce RTX 5070, RTX 5070 Ti, RTX 5080 and RTX 5090 a 16-pin input with an 8-pin adapter in the box, while AMD's reference Radeon RX 9000 specifications use 8-pin plugs. Board partners decide the rest, so the card maker's own page is the one to check.
| Card | Power input | Recommended PSU |
|---|---|---|
| NVIDIA GeForce RTX 5090 | 16-pin (600 W cable), or 4 x 8-pin on the adapter in the box | 1,000 W |
| NVIDIA GeForce RTX 5080 | 16-pin (450 W cable), or 3 x 8-pin on the adapter in the box | 850 W |
| NVIDIA GeForce RTX 5070 Ti | 16-pin (300 W cable), or 2 x 8-pin on the adapter in the box | 750 W |
| NVIDIA GeForce RTX 5070 | 16-pin (300 W cable), or 2 x 8-pin on the adapter in the box | 650 W |
| NVIDIA RTX 5060 Ti, RTX 5060, RTX 5050 | 1 x 8-pin, or a 300 W 16-pin cable | 550 to 600 W |
| ASUS Prime GeForce RTX 5070 Ti OC | 1 x 16-pin | 750 W |
| ASUS TUF Gaming GeForce RTX 5070 Ti | 1 x 16-pin | 850 W |
| Gigabyte GeForce RTX 5070 Ti Eagle OC SFF | 1 x 16-pin | 750 W |
| ASUS Dual GeForce RTX 5060 OC | 1 x 8-pin | 550 W |
| AMD Radeon RX 9070 XT (reference) | 2 x 8-pin | 750 W |
| ASUS TUF Gaming Radeon RX 9070 XT OC | 3 x 8-pin | 850 W |
| Sapphire NITRO+ RX 9070 XT | 12V-2x6, 3 x 8-pin adapter included | 850 W |
| AMD Radeon RX 9070 and RX 9070 GRE (reference) | 2 x 8-pin | 650 W |
| AMD Radeon RX 9060 XT 16GB (reference) | 1 x 8-pin | 450 W |
NVIDIA's adapter counts work out at 150 W per 8-pin cable: 2 for the GeForce RTX 5070 Ti's 300 W cable rating, 3 for the GeForce RTX 5080's 450 W cable rating, 4 for the GeForce RTX 5090's 600 W cable rating. A power supply maker's own cable needs fewer sockets. Corsair says its 2 x 8-pin to 12V-2x6 cable combines two 300 W outputs from the power supply into one 600 W connector, and CableMod puts a modern PSU-side 8-pin socket at over 300 W, up to 342 W depending on model. The wattage each card needs is covered in How many watts PSU do I need?
Are adapters safe, and will an older PSU work?
Yes to both, with conditions. NVIDIA's adapter is safe when every 8-pin plug is connected and the 16-pin end is fully seated, and an ATX 3.0 or ATX 2.x power supply works if it meets the card's wattage.
- Seat the plug fully:CableMod says the plug should sit completely flush with the card's socket with no gaps, the cable should run straight for 35 mm before any bend, and the plug should be rechecked after cable management. It asks for 4 to 4.5 cm between the card and the side panel.
- Connect every 8-pin plug: CableMod says all 8-pin plugs on a 16-pin adapter cable must be connected, and NVIDIA lists separate cables for each.
- Do not stack adapters:an extension or angled adapter on top of NVIDIA's adapter adds a joint at a 600 W connector; a direct cable from the power supply has one plug at each end.
- ATX 3.0 units: the native 12VHPWR cable fits the 12V-2x6 socket, according to Corsair.
- ATX 2.x units: work through the adapter if they have enough watts and enough separate 8-pin cables; the rest of the checklist is in How to upgrade an old gaming PC. Owners of a Corsair Type 4 RM, RMi or RMx unit who want one sleeved cable can fit the CableMod C-Series PRO ModMesh 12VHPWR kit at £65.21.
The cost gap is wide. Keeping a sound power supply costs nothing, a direct cable for a Corsair Type 5 unit costs £24.24, and a new 850 W ATX 3.1 unit costs £89.99 for the Corsair RM850e (2025) to £139.99 for the Corsair RM850x SHIFT (2025). Buyers whose unit meets the wattage should spend the difference on the card, ranked in Best graphics card UK 2026.
Which power supply has the right cable for an RTX 50 card?

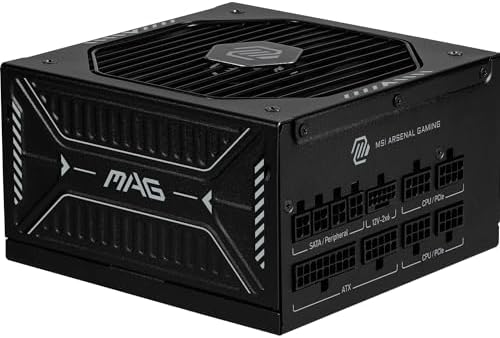

The MSI MAG A850GLS PCIE5 is the pick for a new RTX 50 build or a power supply upgrade, at £124.99 on Amazon UK at the time of writing (October 2026). MSI fits it with a native 600 W 12V-2x6 cable whose plug is coloured yellow so a part-seated connector is easy to see, and rates it at 1,870 W for 100 microseconds, 220% of its 850 W rating, under Intel's ATX 3.1 guide.
MSI MAG A850GLS PCIE5 specifications
- Output: 850 W
- Efficiency: 80 Plus Gold
- Standard: ATX 3.1, native 12V-2x6 cable: Yes (600 W)
- GPU cables: 1 x 12V-2x6 plus 4 x PCIe 6+2
- Cables: Fully modular, Embossed jacket
- SATA connectors: 8
- Fan: 135 mm fluid dynamic bearing
- Length: 150 mm
850 W meets NVIDIA's figure for every card up to the RTX 5080. The four PCIe 6+2 cables also power 8-pin Radeon cards such as the ASUS TUF Gaming Radeon RX 9070 XT OC, which takes three, without an adapter. MSI does not list a zero RPM fan mode, and the Corsair RM850x SHIFT (2025) costs £15.00 more with a 10-year warranty.
MSI MAG A850GLS PCIE5 - pros and cons
Where to buy
Check price
At a glance
Radar · 0-100 scores
- MAG A850GLS PCIE5
- Corsair RM850x SHIFT (2025)
- Corsair RM1000e (2025)
- AORUS ELITE P850W
Verdict
An RTX 50 card does not need a new 12V-2x6 cable or power supply when the existing unit meets NVIDIA's wattage: a 12VHPWR cable from an ATX 3.0 unit fits the 12V-2x6 socket, and the adapter in the box handles an older 8-pin unit, provided every plug is connected and seated flush. A new power supply is worth buying only when the wattage falls short. The MSI MAG A850GLS PCIE5 at £124.99 covers every card up to the RTX 5080, and the Corsair RM1000e (2025) at £94.90 covers the RTX 5090, on Amazon UK at the time of writing (October 2026). Direct cables are ranked in Best sleeved PSU cables UK 2026 and the cards in Best graphics card UK 2026.
Frequently asked questions
Is 12VHPWR the same as 12V-2x6?
Almost. 12V-2x6 is the revised 16-pin connector from the PCIe CEM 5.1 specification that Intel adopted in ATX 3.1, and the change is in the socket, not the cable. Corsair says 12V-2x6 shortens the sense pins by 1.5 mm and lengthens the power terminals by 0.25 mm, and that existing 12VHPWR cables and adapters work with 12V-2x6 sockets.
Can I use the 12VHPWR cable from an ATX 3.0 PSU on an RTX 50 card?
Yes. Corsair says existing 12VHPWR cables work with the 12V-2x6 socket on RTX 50 cards, because the revision changed the pins in the socket rather than the cable. The power supply still has to meet NVIDIA's wattage, 750 W for a GeForce RTX 5070 Ti, and the cable must carry enough power: NVIDIA asks for a 600 W cable on the RTX 5090.
Are 8-pin to 16-pin GPU adapters safe?
Yes, when every 8-pin plug is connected and the 16-pin end sits flush in the card. CableMod says all 8-pin plugs on a 16-pin adapter cable must be connected, and NVIDIA lists separate 8-pin cables: two for an RTX 5070 Ti, three for an RTX 5080 and four for an RTX 5090. Stacking an extension on the adapter adds joints at the connector.
How do I know if a 12V-2x6 plug is fully seated?
The plug should sit completely flush with the card's socket, with no gap, according to CableMod, which also recommends 35 mm of straight cable before any bend and a recheck after cable management. MSI colours the 12V-2x6 plug on the MSI MAG A850GLS PCIE5 cable yellow so a part-seated connector is easy to see, and Corsair adds a coloured plug to its 2025 RMe Series.
Will an old ATX 2.x power supply run an RTX 5080?
Yes, if it is rated at 850 W or more and has three separate PCIe 8-pin cables for NVIDIA's adapter, according to NVIDIA's GeForce RTX 5080 specifications, which base the 850 W figure on a PC with a Ryzen 9 9950X. A unit below 850 W needs replacing; the Corsair RM850e (2025) costs £89.99 on Amazon UK at the time of writing (October 2026).
Do AMD Radeon RX 9000 cards use 12V-2x6?
AMD's reference specifications use 8-pin plugs: two for the Radeon RX 9070 XT, RX 9070 and RX 9070 GRE, and one for the RX 9060 XT. Some board partners fit 12V-2x6 instead. Sapphire's NITRO+ RX 9070 XT takes a 12V-2x6 plug, ships with a 3 x 8-pin adapter and asks for an 850 W power supply, while the ASUS TUF Gaming Radeon RX 9070 XT OC uses three 8-pin plugs.
