ASUS

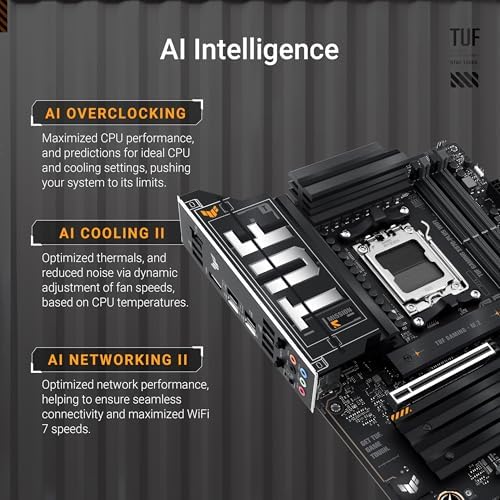

ASUS TUF Gaming X870-Plus WiFi
Motherboards
ASUS ASUS TUF Gaming X870-Plus WiFi
84Points
Spec score
Scored 84 of 100 in motherboards.
Sourced from manufacturer datasheets and verified against retailer spec tables.
84Points
5-axis distribution · scored 0–100 per category
Why is the ASUS ASUS TUF Gaming X870-Plus WiFi better than average?
RAM slots
4 vs 4.11 avg
HDMI count
1 vs 1 avg
Max RAM
192 GB vs 180.62 GB avg
Sata ports
4 vs 4.53 avg
Usb4 count
1 vs 1.38 avg
Fan headers
7 vs 6.75 avg
Full specifications
The complete spec sheet.
Sourced from the ASUS datasheet and verified against retailer-published spec tables.
SpecThis productMotherboards average
SocketAM5
ChipsetAMD X870
RAM typeDDR5
Debug ledNo
RAM slots4avg 4.11
HDMI count1avg 1
Max RAM192 GBavg 180.62 GB
Sata ports4avg 4.53
Usb4 count1avg 1.38
Vrm phases14
Audio codecRealtek ALC1220
Data sourcemanufacturer-datasheet
Ecc supportYes
Fan headers7avg 6.75
Form factorATX
RGB headers3avg 2.58
PCIE x1 slots0avg 0.2
WIFI standardWi-Fi 7
Audio channels7.1avg 7.1
Bios flashbackYes
M2 pcie5 slots1avg 1.49
M2 slots total4avg 4.13
PCIE 4 x16 slots1avg 0.82
PCIE 5 x16 slots1avg 1
Bluetooth version5.4avg 5.32
Displayport count1avg 0.84
Max RAM speed8000 MT/savg 8290.91 MT/s
USB 3 2 gen1 count6avg 4.4
USB 3 2 gen2 count4avg 5
Ethernet speed gbps2.5avg 3.11
CPU power connectors2
USB 3 2 gen2x2 count1avg 1
Supported CPU generationsRyzen 7000 / 8000 / 9000
