NVIDIA

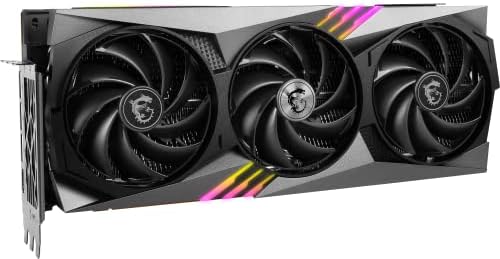

NVIDIA GeForce RTX 4090
Graphics Cards
NVIDIA NVIDIA GeForce RTX 4090
95Points
Spec score
Scored 95 of 100 in graphics cards.
Sourced from manufacturer datasheets and verified against retailer spec tables.
95Points
5-axis distribution · scored 0–100 per category
Why is the NVIDIA NVIDIA GeForce RTX 4090 better than average?
Slots
3 vs 2.17 avg
TDP
450 W vs 296.47 W avg
VRAM
24 GB vs 16.28 GB avg
Length
304 mm vs 276 mm avg
Cuda cores
16384 vs 8497.51 avg
HDMI count
1 vs 1 avg
Full specifications
The complete spec sheet.
Sourced from the NVIDIA datasheet and verified against retailer-published spec tables.
SpecThis productGraphics Cards average
Slots3avg 2.17
TDP450 Wavg 296.47 W
VRAM24 GBavg 16.28 GB
GPU chipAD102
Length304 mmavg 276 mm
Cuda cores16384avg 8497.51
HDMI count1avg 1
Data sourcemanufacturer-datasheet
Memory typeGDDR6X
ArchitectureAda Lovelace
Dlss versionDLSS 3
Max displays4avg 4
Release year2022avg 2023.89
Tensor cores512avg 274.8
Base clock2235 MHzavg 2091.82 MHz
Lithography nm5avg 4.23
Max resolution7680
Memory bus bit384avg 258.25
Boost clock2520 MHzavg 2615.36 MHz
Power connectors1
Displayport count3avg 2.81
Memory speed gbps21avg 22.91
Ray tracing cores128avg 72.21
Psu recommendation850 Wavg 742.11 W
Memory bandwidth gbps1008avg 735.05
Ray tracing generation3
