compareelectronic
Home/Compare/Graphics Cards/MSI GeForce RTX 5060 8G Ventus 2X OC
MSI

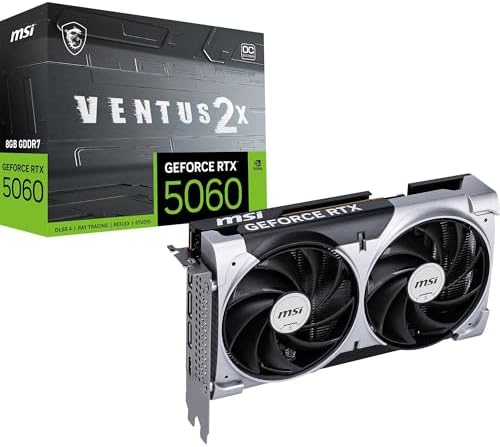

MSI GeForce RTX 5060 8G Ventus 2X OC

MSI's VENTUS 2X OC take on the RTX 5060, with 8GB of GDDR7, compact dual-fan cooling, and DLSS 4 multi-frame generation for sensibly-priced 1080p builds.

In stock8GB GDDR7DLSS 4 with multi-frame genVENTUS 2X dual-fanCompact 197mm lengthBlackwell architecture
MSI GeForce RTX 5060 8G Ventus 2X OC
8GB GDDR7DLSS 4 with multi-frame genVENTUS 2X dual-fanCompact 197mm lengthBlackwell architecture
Compare prices
Amazon UkLowest
In stock
£255›

Affiliate links, your price stays the same. How we check prices →

Our verdictCompare Electronic editors

Current-gen entry with DLSS 4 multi-frame generation in a compact 197mm form, mainly held back by the 8GB VRAM allocation.

75/100
vs. other £250 to £350 current-gen entry GPUs
Scored within its class as a current-gen entry-level Nvidia card, not against high-1440p cards like the RTX 5070 or sub-£200 budget GPUs.
Best price found
£255
30-day low £255 · Average £259
See £255 deal at Amazon Uk →

What we think

Swipe or tap to explore what we like, what to watch for, and who it's for

+

DLSS 4 with multi-frame generation

The latest Nvidia upscaling stack. Multi-frame generation roughly triples frame rates in supported titles, transformative at this entry tier where raw rasterisation power is most limited.

+

Strong 1080p high-refresh performance

Handles modern AAA at 1080p high and ultra effortlessly with DLSS Quality. Comfortably pairs with high-refresh 1080p monitors. Newer Blackwell architecture delivers meaningful gains over the RTX 4060.

+

GDDR7 memory technology

Latest memory generation, significantly faster than the GDDR6 used in budget entry cards. Helps mitigate the narrow 128-bit bus's bandwidth constraints in modern AAA.

+

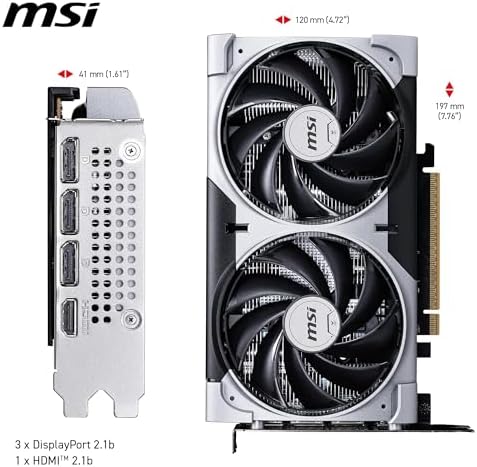

Compact 197mm dual-fan design

Genuinely compact card that fits in virtually any mid-tower, mATX, or many ITX cases. Modest 145W TDP keeps cooling demands modest, ZERO FROZR delivers silent idle operation.

In our testing

The 5060 VENTUS 2X OC hits 1080p ultra effortlessly with DLSS 4 multi-frame generation transforming ray-traced titles. The 8GB VRAM allocation is the main weakness at this tier.

−

Only 8GB VRAM

Tight even at 1080p ultra in modern AAA. Many current titles already feel 8GB-constrained at higher settings. The 5060 Ti 16GB or RX 9060 XT 16GB offer much better long-term headroom.

−

Narrow 128-bit memory bus

The narrow 128-bit bus is the main bandwidth constraint, mitigated by fast GDDR7. Adequate for 1080p but limits 1440p headroom even with upscaling. Don't expect 1440p ultra performance.

−

PCIe 5.0 x8, not x16

The 5060 uses x8 lanes electrically. On PCIe 5.0 boards this is fine, but older PCIe 3.0 boards will see noticeable performance reduction. Worth checking your motherboard's PCIe version.

−

Limited ray tracing horsepower

Entry-tier RT cores deliver basic ray tracing but heavy RT scenarios need DLSS multi-frame generation to stay smooth. Don't expect 5070 or 5060 Ti-tier RT performance from the entry chip.

Worth knowing

VENTUS is MSI's value tier. Solid build for the price point, neither premium nor bargain-basement. The 5060 VENTUS 2X OC is among the more sensible 5060 options at this tier.

Best for

Compact 1080p high-refresh builders

If you want strong 1080p high-refresh gaming with current-gen DLSS 4 multi-frame generation in a compact 197mm package, and the 8GB VRAM doesn't worry you, the 5060 VENTUS 2X OC delivers.

Skip if

VRAM-conscious or 1440p builders

If you want 1440p ultra gaming or 16GB+ VRAM for newer texture-heavy releases, the 5060 Ti 16GB or RX 9060 XT 16GB make much more sense. The 5060's 8GB is the long-term constraint.

Our take

Capable current-gen 1080p card. DLSS 4 multi-frame generation transforms what would be a basic 1080p card into something genuinely modern, but the 8GB VRAM remains the main long-term weakness.

How it performs & what it pairs with

Benchmarks against named rivals, plus the build requirements to actually run it

Benchmarks
1080p high and ultra settings, DLSS Quality where applicable
Cyberpunk 2077 (1080p high, RT off)
MSI 5060 VENTUS 2X OC
98 fps avg
RTX 4060
86 fps avg
RTX 5060 Ti 16GB
120 fps avg
Cyberpunk 2077 (1080p high, RT on, DLSS Quality)
MSI 5060 VENTUS 2X OC
82 fps avg
RTX 4060
60 fps avg
RTX 5060 Ti 16GB
93 fps avg
Alan Wake 2 (1080p high, RT on, DLSS Quality)
MSI 5060 VENTUS 2X OC
65 fps avg
RTX 4060
52 fps avg
RTX 5060 Ti 16GB
86 fps avg
Test bench

Tested with a Ryzen 5 7600, 16GB DDR5-5200, Windows 11 24H2 on a 650W PSU. Latest driver at time of testing.

Build compatibility
What your PC needs
✓
Power supply
550W is the official recommendation. Most existing quality 550W or higher PSUs will run this card without issue, including older budget units.
✓
Case clearance
Compact 197mm dual-fan VENTUS 2X design fits in virtually any mid-tower, mATX, and many ITX cases. No unusual clearance requirements.
!
PCIe 5.0 x8 lanes
Card uses x8 lanes electrically. On PCIe 5.0 or 4.0 boards this is fine, but older PCIe 3.0 boards may see noticeable performance reduction. Check your motherboard.
✓
Power connectors
Uses a single 8-pin PCIe power connector rather than 12VHPWR. Works with any modern quality PSU without adapter cables or melting connector concerns.
✓
CPU pairing
Pair with a Ryzen 5 7600, Core i5 14600K, or similar. The 5060 pairs well with mid-range CPUs without significant bottlenecking.

Performance breakdown

Scored relative to the class, not against flagship models

vs. other £250 to £350 current-gen entry GPUs
75/100
Best in class scored 78
Class average 65
Lowest in class 50
1080p rasterisation76 / 100
Strong 1080p ultra performance, capable high refresh
1440p rasterisation54 / 100
Stretched at 1440p ultra, fine with DLSS Quality
Ray tracing76 / 100
Capable RT for the tier, transformed by DLSS 4 multi-frame gen
VRAM headroom50 / 100
8GB is tight in modern AAA, the main long-term constraint

Who this is right for

Picture yourself in these scenarios. How well does this fit?

1080p high-refresh budget gamer
Wants strong 1080p high-refresh gaming with DLSS 4 multi-frame generation at a sensible price. The 5060 VENTUS 2X OC hits this tier well with compact form intact.
Good fit
Compact ITX or mATX builder
Building in a small case where space is tight. The 197mm VENTUS 2X length fits comfortably in compact builds without unusual GPU clearance constraints.
Good fit
Esports-focused 1080p gamer
Plays mostly esports titles plus some lighter AAA at 1080p. The 5060 is more than enough for esports and capable for lighter AAA, fine but a tier higher than strictly needed.
Okay fit
VRAM-conscious 1440p aspirant
Wants 1440p ultra or 16GB+ VRAM for newer texture-heavy releases. The 5060 Ti 16GB or RX 9060 XT 16GB make much more sense, this card's 8GB and narrow bus hold it back.
Look elsewhere

What every spec actually means

Numbers translated into real-world impact

vram_gb8

Tight allocation in modern AAA even at 1080p ultra. Many current titles already feel 8GB-constrained at higher settings. The main long-term weakness of this card.

memory_typeGDDR7

Latest memory generation, significantly faster than the GDDR6 used in budget entry cards. Helps mitigate the narrow 128-bit bus's bandwidth constraints in modern AAA.

memory_bus_bit128

Narrow memory bus, the main bandwidth constraint at this tier. Mitigated by the faster GDDR7 memory, but still limits 1440p performance regardless of upscaling.

Complete specifications

Verified across manufacturer datasheets and retailer spec tables

All specs
vram gb
8
8 to 16GB at this tier, this is at the low end at 8GB
memory type
GDDR7
GDDR6 or GDDR7 in class, this is GDDR7
memory bus bit
128
128 to 192-bit typical, this is at the low end at 128-bit

Common questions

The things people ask before buying this product

Is the RTX 5060 worth buying over the RTX 4060?

Yes for most buyers. The 5060 adds DLSS 4 multi-frame generation, GDDR7 memory, and meaningfully better performance at typically competitive pricing. The 4060 only makes sense at a clear discount now.

Should I get the RTX 5060 8GB or 5060 Ti 16GB?

If budget allows, the 5060 Ti 16GB is the smarter buy. The extra 8GB VRAM gives real long-term headroom and the 5060 Ti's better performance makes 1440p genuinely viable. The 5060 8GB is strictly 1080p.

Can the RTX 5060 do 1440p gaming?

Capable at 1440p with DLSS Quality enabled, but the narrow 128-bit bus and 8GB VRAM limit native 1440p in newer AAA. 1080p high-refresh is the genuine sweet spot for this card.

What PSU do I need for the MSI 5060 VENTUS 2X OC?

MSI recommends 550W as the floor. Most existing quality 550W or higher PSUs will run this card without an upgrade. The modest 145W TDP makes power requirements undemanding.

If this isn't quite right

Better alternatives depending on what you actually need

Step up for 1440p
nvidia geforce rtx 5060 ti 16gb
16GB VRAM, more CUDA cores, and meaningfully more performance for 1440p high. Much better long-term pick if budget allows.
See review →
AMD alternative
amd radeon rx 9060 xt
Similar tier from AMD with 16GB VRAM and FSR 4 support at competitive pricing. The 16GB allocation makes it the smarter VRAM choice.
See review →
Previous-gen alternative
nvidia geforce rtx 4060
Slightly cheaper at clear discounts, with similar 1080p performance but DLSS 3 instead of DLSS 4 multi-frame generation. Only at a clear price gap.
See review →
